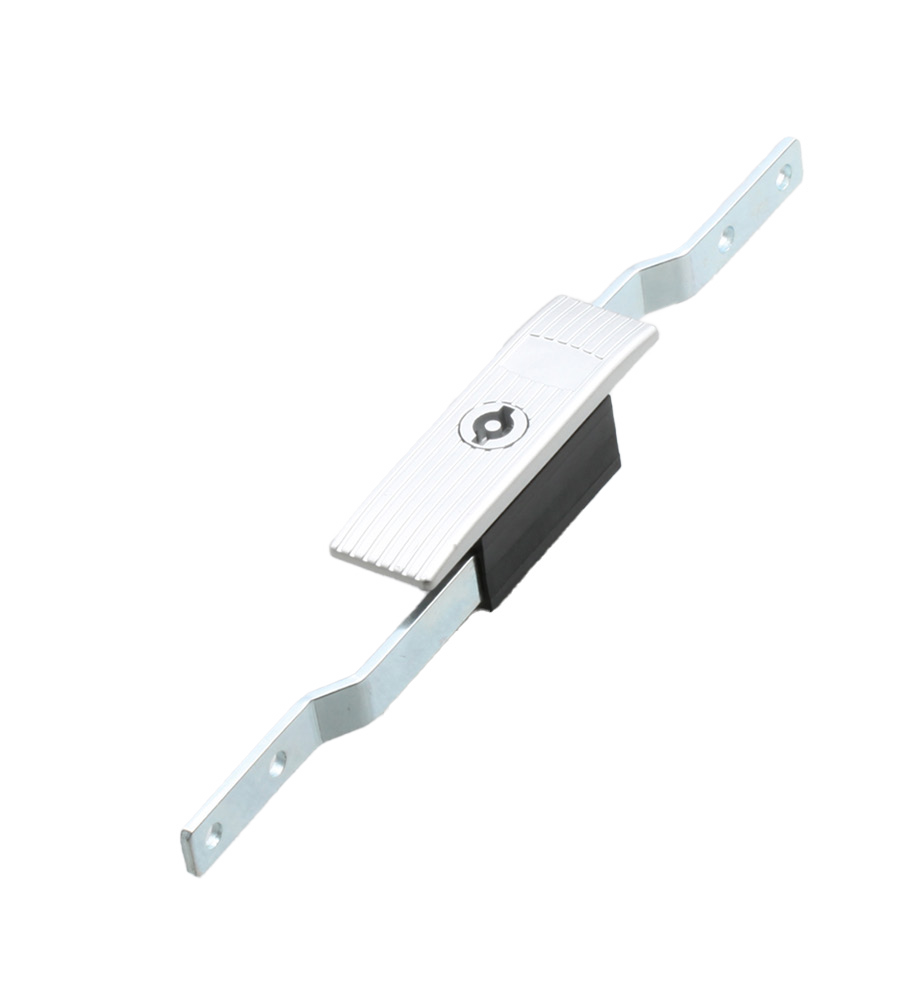

This is an industrial cabinet connecting rod lock, also known as a top and bottom connecting rod lock. It is mainly used in electrical control cabinets, communication cabinets, and equipment enclosures. The multi-point locking is achieved by the rotation of the lock core driving the upper and lower connecting rods. The press-type bouncing lock panel is equipped with a key locking function, which is theft-proof and shock-resistant, and the locking is reliable. It provides protection for the opening and closing of industrial environment cabinets, realizing multi-point synchronous locking of the cabinet door and ensuring the safety of internal components of the cabinet.
Item No :
ICL-00003Order(MOQ) :
1Payment :
50% T/T in advance, Balance paid again when finishing production and before shipmentProduct Origin :
XiamenColor :
Black powder coating, black electrophoresis, chromium electroplating, matte black spray coating. Color can be customizedShipping Port :
Xiamen Port,ChinaLead Time :
15-20daysWeight :
As per product's size and thickness and materialsProduct Description: Cabinet connecting rod lock, top and bottom rod lock, control cabinet multi-point lock, connecting rod lock with dust cover lock core, cabinet connecting rod drive lock, equipment cabinet door connecting rod lock;
Model: ICL820-1A
Base material
Base, transmission housing, lock core: zinc alloy;
Panel: ABS
Connecting rod drive rod, lock tongue, key: carbon steel;
Performance parameters: Input torque value :≤9 n.m;

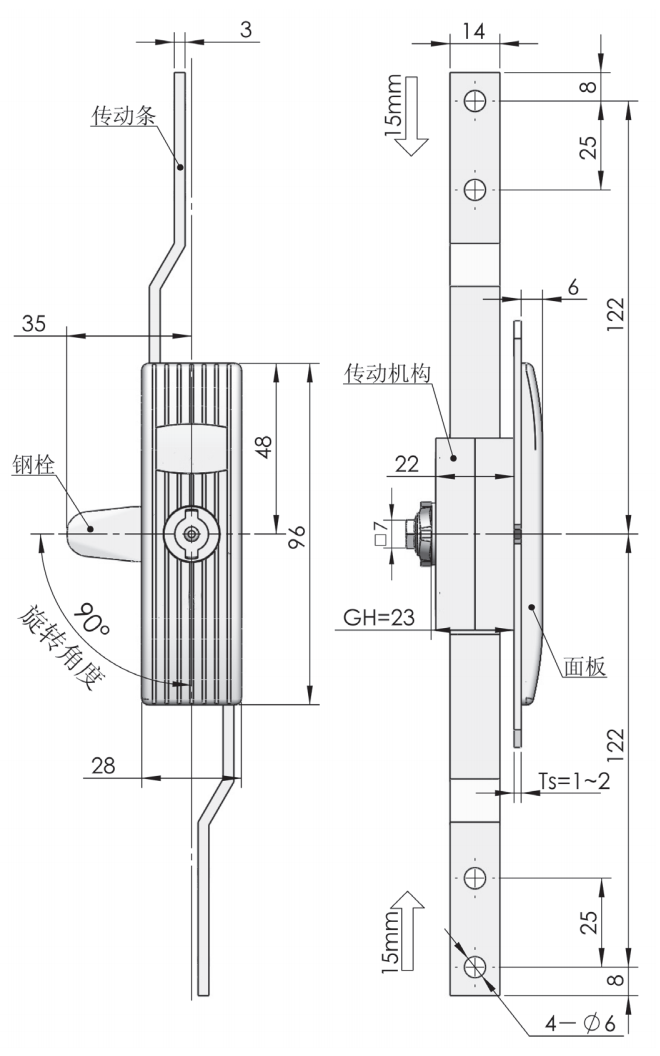

Structural description: 90° rotation for opening or locking, left rotation, right rotation, IP40;
Surface treatment
1. Panel: Black powder coating, nano matte, matte black spray coating. Color can be customized
2. Connecting rod components: Hot-dip galvanizing, electro-galvanizing (rust and corrosion prevention)
3. Lock core: Nickel-plated treatment, wear-resistant and rust-proof
Processing technology: die-casting, CNC fine finishing, stamping, bending, drilling and tapping, assembly, torque testing, opening and closing life inspection;
Unit price: Priced based on quantity;
Product

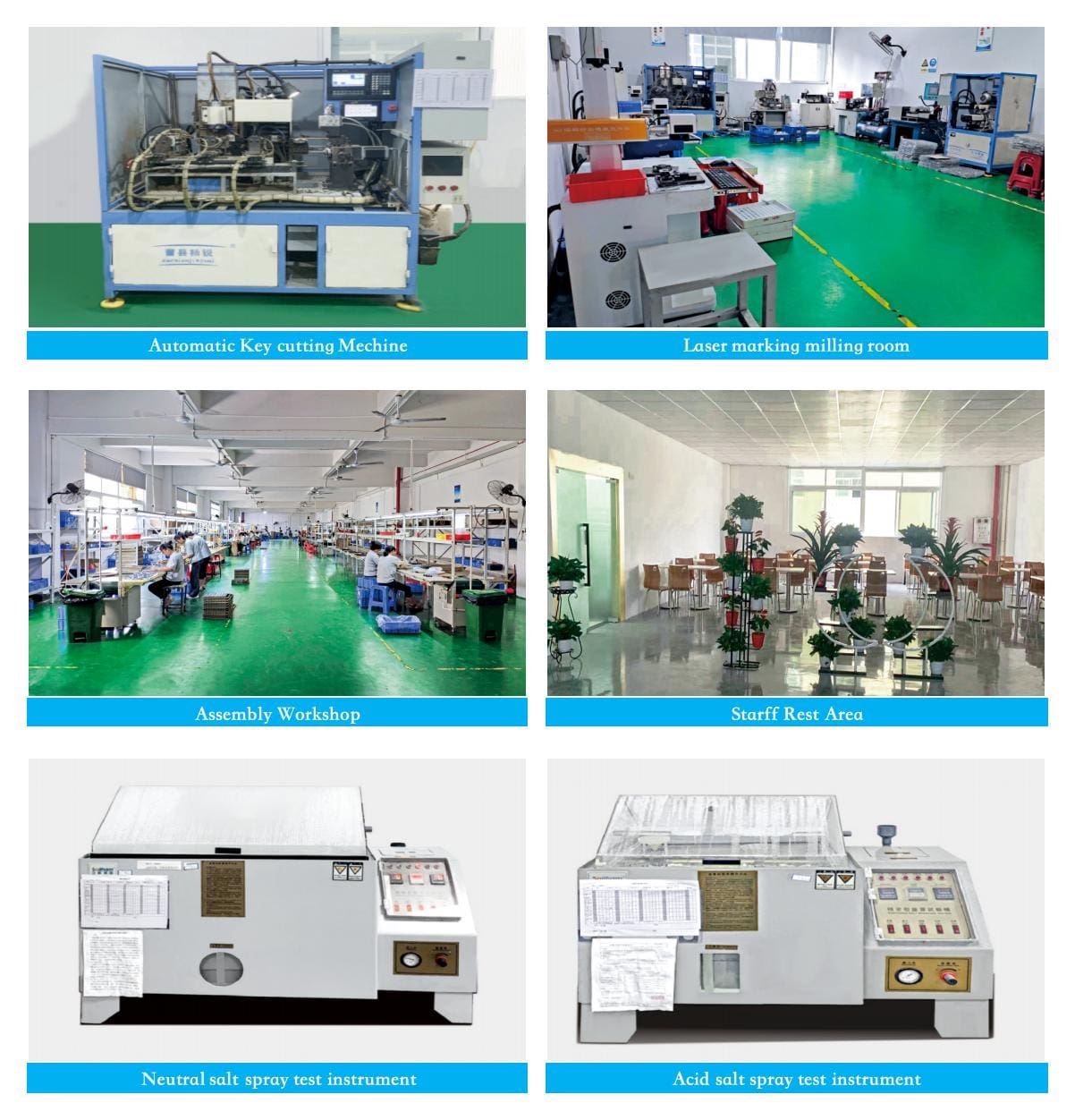

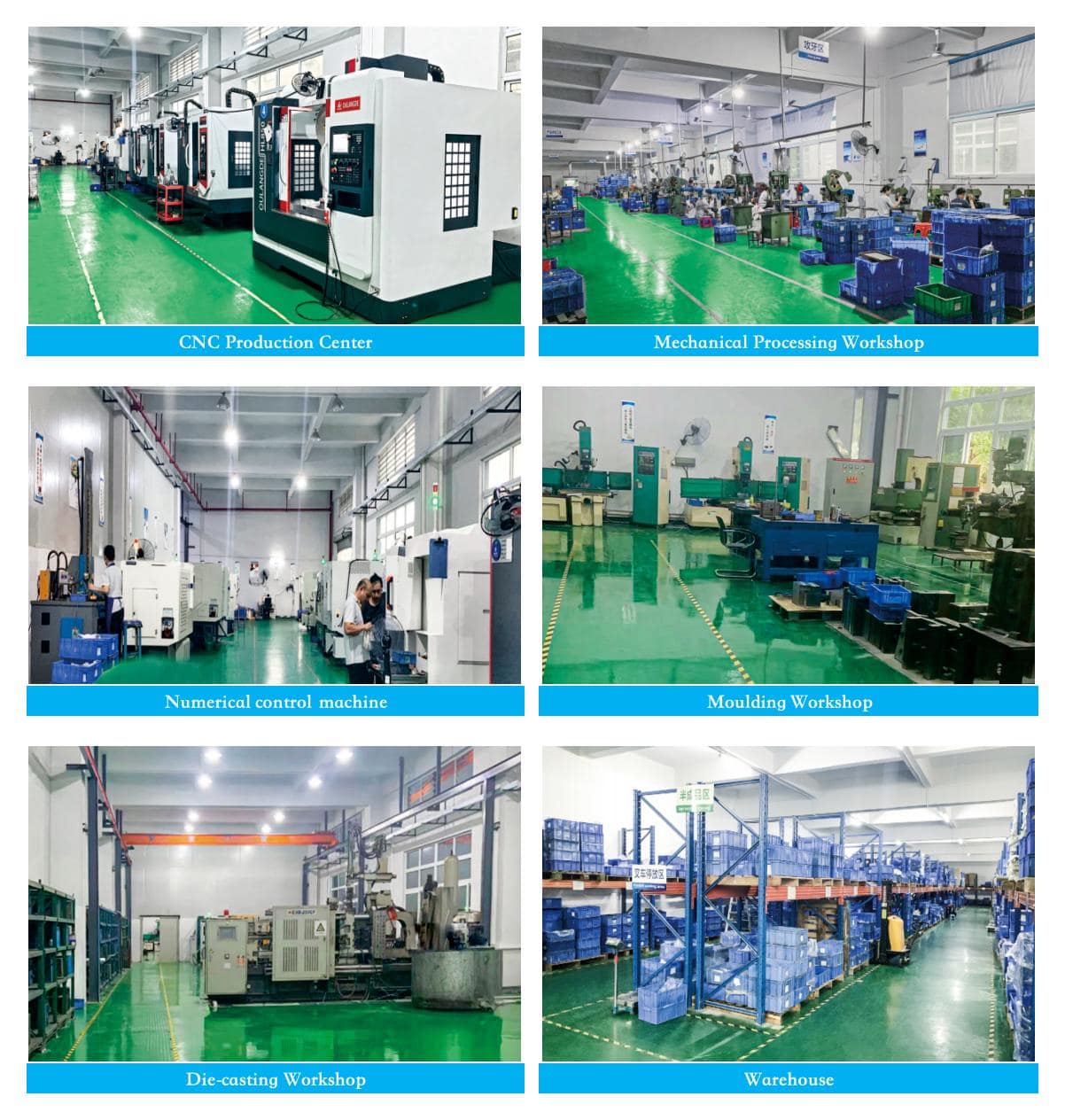

Workshop:
包装：
物流：海运、空运、国际快递（DHL、FedEx 联邦、UPS、TNT）、铁路运输（中欧班列为主）、公路陆运（毗邻国家短途外贸）
The electrical control cabinet connecting rod lock (top and bottom connecting rod lock) is a multi-point linkage protection lock specially developed for various types of electrical control cabinets. It is compatible with high and low voltage electrical control cabinets, frequency conversion control cabinets, PLC industrial control cabinets, outdoor electrical cabinets and other sheet metal cabinet equipment.
